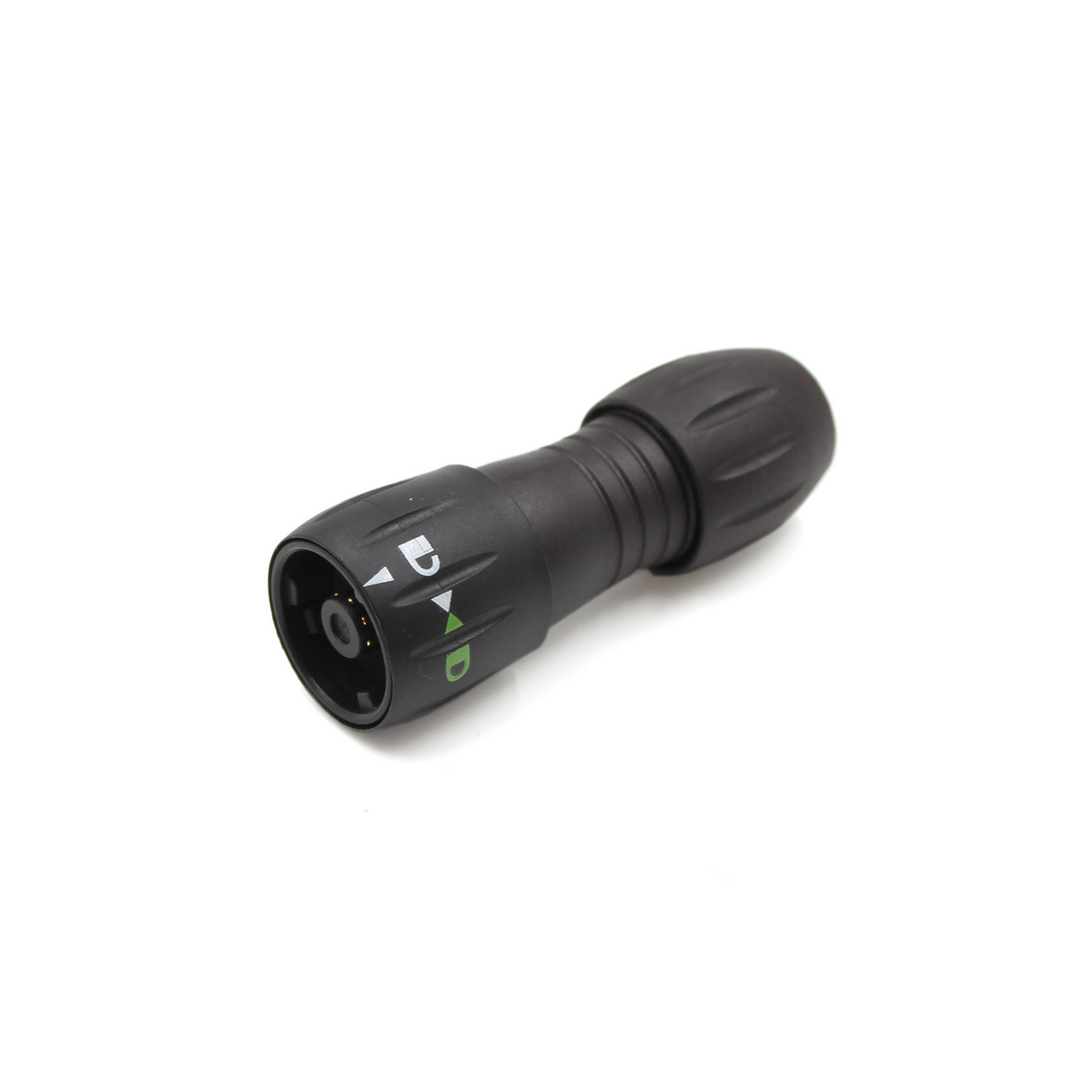

Binder 770 Plug

€22.00€27.61Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

The Binder 770 connector is our standard connector for tether connections above the water. The connectors have 8 pins and are IP67 splashproof when mated, reasonably priced, and compact.

The Binder 770 plug is pre-installed on all Fathom tethers since August 2018, but can be used to retrofit older tethers. The Binder 770 bulkhead can be mounted in a spare hole on the FXTI for your custom connections. A corresponding Binder 770 Plug is required for use.

The connector has a current rating of 2A per pin, is rated for 175V (1750V impulse), can handle >5000 mating cycles, and has gold plated pins.

Please note that the connector requires moderate soldering skills and we highly recommend checking out our guide for tips on soldering it successfully.

What's in the box

1 x Binder 770 Plug (2.5-4 mm part no: 99-0771-000-08; 6-8 mm part no: 99-0771-002-08)

Technical details

Specifications

Parameter	Value
Termination	Solder
Wire gauge	0.25 mm²	24 - 28 AWG
Ingress protection	IP67
Mechanical operation	> 5000 mating cycles
Temperature range	-25°C - 85°C	-13°F - 185°F
Rated voltage	175 V
Rated impulse voltage	1750 V
Rated current	2 A
Contact material	CuZn
Body material	PA (UL 94 HB)
