Potted Cable Penetrator

Blue Robotics

Potted Cable Penetrator

€6.00€7.53Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

SKU BR-100511

  • Delivery across Europe from Finland, other countries on request
  • Not sure it fits your build? Ask us — we build on the same platform.

Description

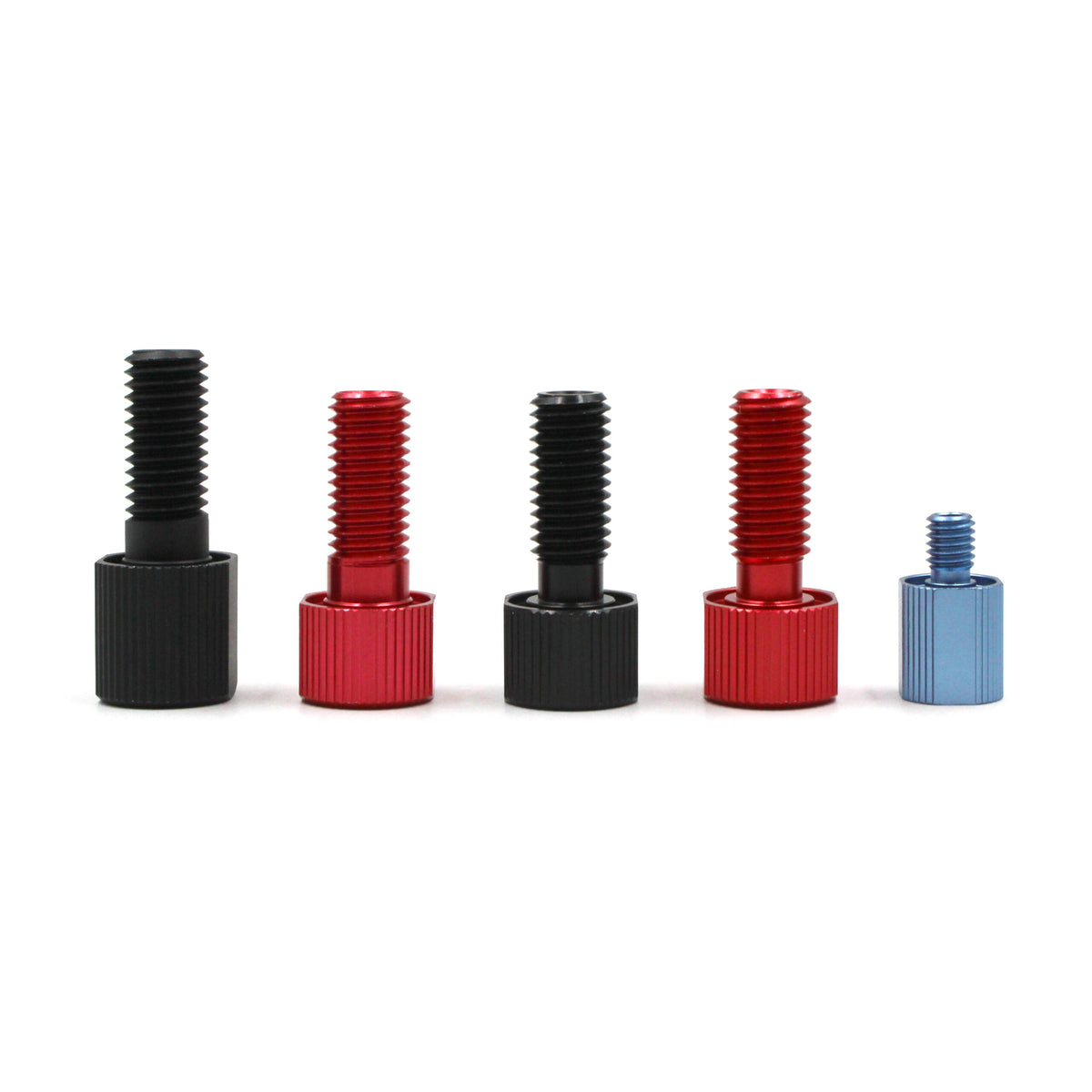

This potted cable penetrator is a simple solution to waterproofing your robot. It’s basically a bolt with a hole that a cable can be glued (potted) into to provide a waterproof connection through watertight enclosures, boxes, panels, etc.

We recommend the Loctite Marine Epoxy and the Potting Kit to complete assembly.

For high-pressure, high-reliability seals rated to 1000 meters depth, we recommend our WetLink Penetrators.

Features

  • Anodized aluminum construction for corrosion resistance and high strength
  • Captive O-ring face seal that works on any smooth surface
  • Wrench flats for easy tightening
  • Multiple inner diameters to secure the cable jacket but leave room for potting compound

What's in the box

For each unit, the following items are included for the selected cable diameter size and bulkhead size.

  • 1 x Bulkhead
  • 1 x Nut
  • 1 x O-Ring

Technical details

Specifications

ProductProduct SKUMaterialMaximum Compatible Cable DiameterRecommended Hole DiameterBolt ThreadingBolt LengthBolt Head DiameterWrench FlatsO-ring
M6 Cable Penetrator for 4-5mm CableBR-100991Aluminum 6061-T65 mm6 mm (tapped)M6 x 1.06.5 mm12 mm12 mmNBR70 AS568-010
M10 Cable Penetrator for 3-4mm CableBR-100996Aluminum 6061-T64 mm10 mm (through-hole)M10 x 1.525 mm18 mm16 mm (5/8 in)NBR70 AS568-013
M10 Cable Penetrator for 4-5mm CableBR-100886Aluminum 6061-T65 mm10 mm (through-hole)M10 x 1.525 mm18 mm16 mm (5/8 in)NBR70 AS568-013
M10 Cable Penetrator for 6mm CableBR-101086Aluminum 6061-T66 mm10 mm (through-hole)M10 x 1.525 mm18 mm16 mm (5/8 in)NBR70 AS568-013
M10 Cable Penetrator for 8mm CableBR-100511Aluminum 6061-T68 mm10 mm (through-hole)M10 x 1.525 mm18 mm16 mm (5/8 in)NBR70 AS568-013

3D Models

PENETRATOR-M-BOLT-4MM-6-8-R3 (.zip)

PENETRATOR-M-BOLT-5MM-3ID-10-25-R1 (.zip)

PENETRATOR-M-BOLT-5MM-10-25-R2 (.zip)

PENETRATOR-M-BOLT-6MM-10-25-R2 (.zip)

PENETRATOR-M-BOLT-8MM-10-25-R1 (.zip)

PENETRATOR-M-NUT-10-16-R1 (.zip)

PENETRATOR-M-NUT-10-8-R2 (.zip)

Revision History

6 July 2023

  • PENETRATOR-M-BOLT-4MM-6-8-R3-RP SKU changed to BR-100991
  • PENETRATOR-M-BOLT-5MM-10-25-R2-RP SKU changed to BR-100886
  • PENETRATOR-M-BOLT-5MM-3ID-10-25-R1-RP SKU changed to BR-100996
  • PENETRATOR-M-BOLT-6MM-10-25-R2-RP SKU changed to BR-101086
  • PENETRATOR-M-BOLT-8MM-10-25-R2-RP SKU changed to BR-100511

6 March 2023

  • Bulkhead O-rings changed to blue

22 May 2019

  • PENETRATOR-M-BOLT-5MM-3ID-10-25-R1 - Initial release

17 May 2019

  • PENETRATOR-M-BOLT-4MM-6-8-R3 - Initial release

3 November 2017

  • PENETRATOR-M-BOLT-5MM-10-25-R2 - Initial release

4 May 2016

  • PENETRATOR-M-BOLT-8MM-10-25-R1 - Initial release

24 August 2015

  • PENETRATOR-M-BOLT-6MM-10-25-R2 - Initial release
