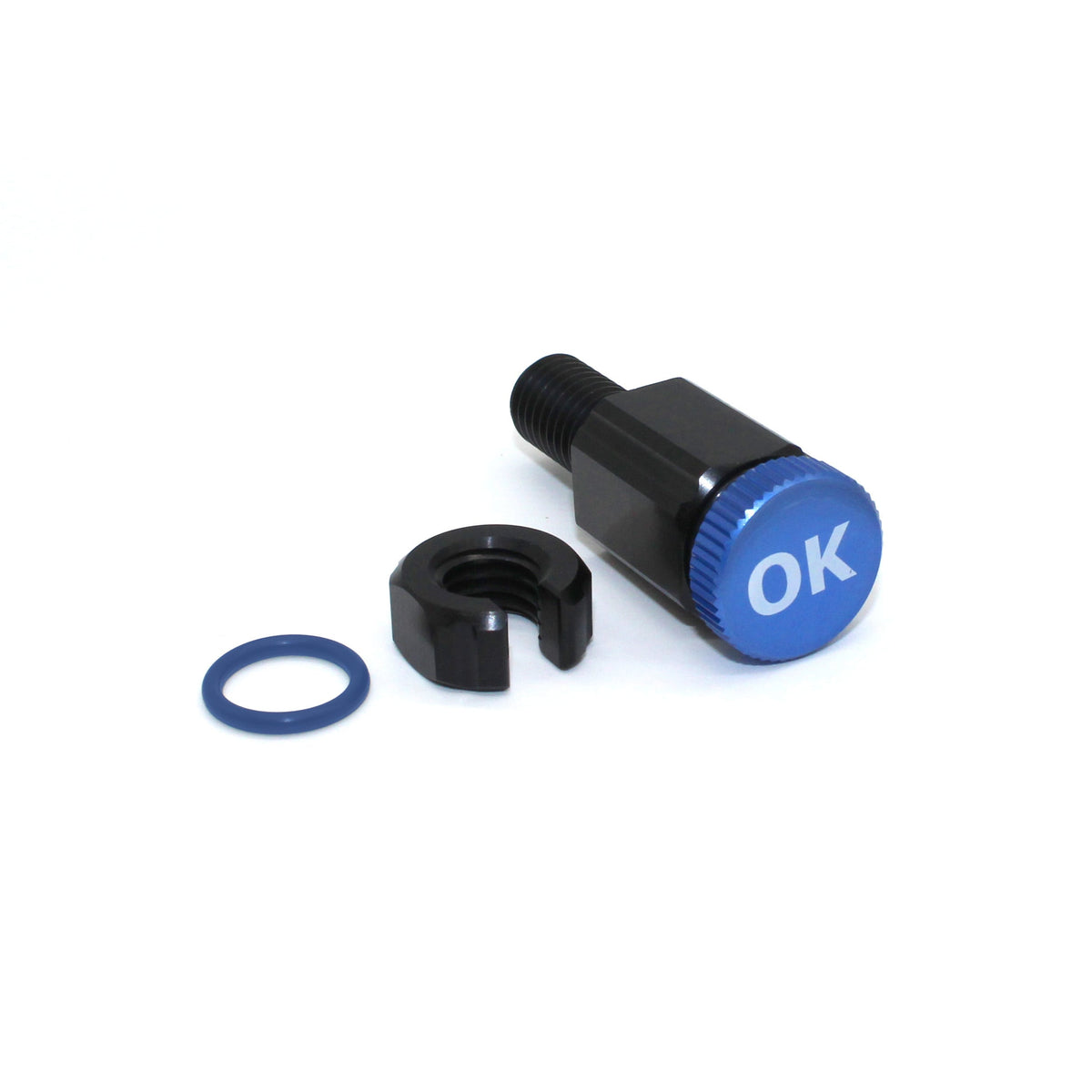

M10 Enclosure Vent and Plug

€12.00€15.06Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

When the end caps and flanges are installed on our watertight enclosures, the air inside is compressed a bit and tries to push the enclosure open. This vent allows you to quickly and easily release the pressure and then seal things back up. You can also use it to vacuum-check your enclosure, ensuring there’s no leaks. It’s based on our standard M10 threaded bulkhead design with an added “plug” that fits in to seal it. The plug is sealed with double O-rings and screws into the bulkhead.

Features

Anodized aluminum construction for corrosion resistance and high strength
O-ring seal that works on any smooth surface
Threaded plug can be tightly secured

What's in the box

1 x Vent Bulkhead
1 x Vent Plug
1 x M10 Nut
1 x O-ring for Bulkhead
2 x O-ring for Vent Plug

Technical details

Specifications

Parameter	Value
Performance
Maximum Rated Depth (seawater)	1000 m	3280 ft
Design Lifetime¹	3 years or 500 cycles to rated depth
Temperature Rating	-40 to 60°C	-40 to 140°F
Tools
Compatible Bulkhead Wrench	BR-100977-010
Recommended Installation Torque	3.5 N⋅m
Physical
Recommended Through Hole Diameter	10.2 mm
Bulkhead Thread	M10 x 1.5
Bulkhead Thread Length	20 mm
Bulkhead/Nut Wrench Flats	16 mm
Overall Assembled Height From Endcap	25 mm
Overall Outer Diameter	18 mm
Bulkhead O-ring Size	AS568-013 Buna-N 70A
Plug O-ring Size	1.5 x 11.5 mm Buna-N 70A
Bulkhead/ Plug Material	7075-T6 Anodized Aluminum
Wetted Materials	Buna-N Rubber Molykote 111 Compound 7075-T6 Anodized Aluminum
In Air Weight (No Nut)	14.3 g
In Water Weight (No Nut)	8.5 g
¹ Design life was used to inform testing in an accelerated environment, does not reflect warranty period.
