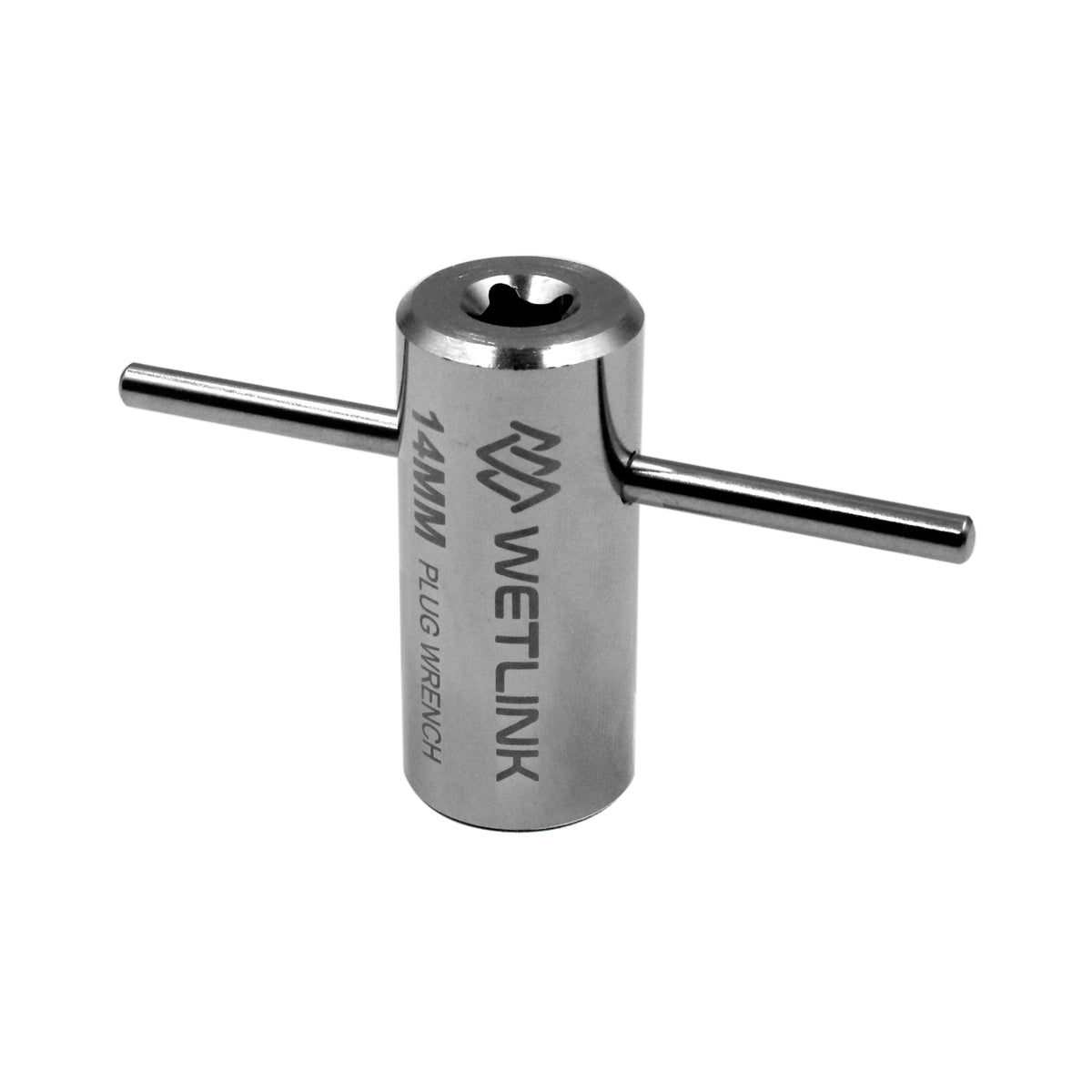

WetLink Penetrator Plug Wrench

€16.00€20.08Excl. VAT — added at checkoutIncl. 25.5% VAT (Finland) — final VAT is calculated at checkout

Ordered for you — ships in about 7 business days

Delivery across Europe from Finland, other countries on request
Not sure it fits your build? Ask us — we build on the same platform.

Description

The WetLink Penetrator Plug Wrench helps you assemble the WetLink Penetrator with ease. It’s designed to tighten the plug into the bulkhead with a slot in the side to account for the cable. The wrench can be used with the included lever bar or with a socket driver.

The wrench is made from hardened tool steel and designed to last!

We recommend using the plug wrench with the WetLink Assembly Block, which holds the penetrator bulkhead while tightening the plug.

What's in the box

For the selected hex size, the following parts are included.

1 x WetLink Penetrator Plug Wrench
1 x Lever Bar

Technical details

Specifications

Plug Wrench Size	11 mm Hex	14 mm Hex	18 mm Hex
Part Number	BR-100369-011	BR-100369-014	BR-100369-018
Material	Chrome-plated steel hardened to HRC 32-36
Square Drive Size	1/4 in (6.3 mm)		3/8 in (9.5 mm)
Hex Size	11 mm	14 mm	18 mm
WetLink Penetrator Compatibility	All 4.5 mm WetLink Penetrators	All 5.5, 6.5, 7.5, 8.5 mm WetLink Penetrators	All 9.5 mm WetLink Penetrators

WLP Tool Information

Seal Size	Bulkhead Size	Bulkhead Wrench	Bulkhead/Nut Flat Size	Bulkhead Installation Torque	Plug Wrench	Plug Hex Size	Plug Installation Torque ²
4.5	M06	M06 (BR-100977-006)	12 mm	1 N⋅m	11 mm (BR-100369-011)	11 mm	~14 N⋅m
4.5	M10	M10 (BR-100977-010)	16 mm	3.5 N⋅m	11 mm (BR-100369-011)	11 mm	~14 N⋅m
5.5, 6.5, 7.5, 8.5	M10	M10 (BR-100977-010)	16 mm	3.5 N⋅m	14 mm (BR-100369-014)	14 mm	~14 N⋅m
9.5	M14	M14 (BR-100977-014)	20 mm	3.5 N⋅m	18 mm (BR-100369-018)	18 mm	~20 N⋅m
¹ The WetLink Penetrator Assembly Block is compatible with all WetLink Penetrator sizes. ² Installation torque is approximate. Actual torque to fully seat the plug varies by cable.
